Forgejo Actions user guide

Forgejo Actions provides Continuous Integration driven from the files in the .forgejo/workflows directory of a repository, with a web interface to show the results. The syntax and semantics of the workflow files will be familiar to people used to GitHub Actions but they are not and will never be identical.

The following guide explains key concepts to help understand how workflows are interpreted, with a set of examples that can be copy/pasted and modified to fit particular use cases.

Quick start

  • Verify that Enable Repository Actions is checked in the Repository tab of the /{owner}/{repository}/settings page. If the checkbox does not show it means the administrator of the Forgejo instance did not activate the feature. enable actions
  • Add the following to the .forgejo/workflows/demo.yaml file in the repository.
    on: [push]
jobs:
  test:
    runs-on: docker
    steps:
      - run: echo All Good
    demo.yaml file
  • Go to the Actions tab of the /{owner}/{repository}/actions page of the repository to see the result of the run. actions results
  • Click on the workflow link to see the details and the job execution logs. actions results

Concepts

Forgejo runner

Forgejo itself does not run the jobs, it relies on the Forgejo runner to do so. See the Forgejo Actions administrator guide for more information.

Actions

An Action is a repository that contains the equivalent of a function in any programming language. It comes in two flavors, depending on the file found at the root of the repository:

  • action.yml: describes the inputs and outputs of the action and the implementation. See this example.
  • Dockerfile: if no action.yml file is found, it is used to create an image with docker build and run a container from it to carry out the action. See this example and the workflow that uses it. Note that files written outside of the workspace will be lost when the step using such an action terminates.

One of the most commonly used action is checkout which clones the repository that triggered a workflow. Another one is setup-go that will install Go.

Just as any other program of function, an Action has pre-requisites to successfully be installed and run. When looking at re-using an existing Action, this is an important consideration. For instance setup-go depends on NodeJS during installation.

Expressions

In a workflow file strings that look like ${{ ... }} are evaluated by the Forgejo runner and are called expressions. As a shortcut, if: ${{ ... }} is equivalent to if: ..., i.e the ${{ }} surrounding the expression is implicit and can be stripped. Checkout the example that illustrates expressions.

Literals

  • boolean: true or false
  • null: null
  • number: any number format supported by JSON
  • string: enclosed in single quotes

Logical operators

OperatorDescription
( )Logical grouping
[ ]Index
.Property de-reference
!Not
<Less than
<=Less than or equal
>Greater than
>=Greater than or equal
==Equal
!=Not equal
&&And
||Or

NOTE: String comparisons are case insensitive.

Functions

  • contains( search, item ). Returns true if search contains item. If search is an array, this function returns true if the item is an element in the array. If search is a string, this function returns true if the item is a substring of search. This function is not case sensitive. Casts values to a string.
  • startsWith( searchString, searchValue ). Returns true when searchString starts with searchValue. This function is not case sensitive. Casts values to a string.
  • endsWith( searchString, searchValue ). Returns true if searchString ends with searchValue. This function is not case sensitive. Casts values to a string.
  • format( string, replaceValue0, replaceValue1, ..., replaceValueN). Replaces values in the string, with the variable replaceValueN. Variables in the string are specified using the {N} syntax, where N is an integer. You must specify at least one replaceValue and string. Escape curly braces using double braces.
  • join( array, optionalSeparator ). The value for array can be an array or a string. All values in array are concatenated into a string. If you provide optionalSeparator, it is inserted between the concatenated values. Otherwise, the default separator , is used. Casts values to a string.
  • toJSON(value). Returns a pretty-print JSON representation of value.
  • fromJSON(value). Returns a JSON object or JSON data type for value. You can use this function to provide a JSON object as an evaluated expression or to convert environment variables from a string.

Caching commonly used files

When a job starts, it can communicate with the Forgejo runner to fetch commonly used files that were saved by previous runs. For instance the https://code.forgejo.org/actions/setup-go action will do that by default to save downloading and compiling packages found in go.mod.

It is also possible to explicitly control what is cached and when using the https://code.forgejo.org/actions/cache action.

Services

PostgreSQL, redis and other services can be run from container images with something similar to the following. See also the set of examples.

services:
  pgsql:
    image: postgres:15
    env:
      POSTGRES_DB: test
      POSTGRES_PASSWORD: postgres

A container with the specified image: is run before the job starts and is terminated when it completes. The job can address the service using its name, in this case pgsql.

The IP address of pgsql is on the same docker network as the container running the steps and there is no need for port binding (see the docker run —publish option for more information). The postgres:15 image exposes the PostgreSQL port 5432 and a client will be able to connect as shown in this example


The location of the container image to run.

env

Key/value pairs injected in the environment when running the container, equivalent to —env.

cmd

A list of command and arguments, equivalent to [COMMAND] [ARG…].

options

A string of additional options, as documented docker run. For instance: “—workdir /myworkdir —ulimit nofile=1024:1024”.

NOTE: the --volume option is restricted to a whitelist of volumes configured in the runner executing the task. See the Forgejo Actions administrator guide for more information.

username

The username to authenticate with the registry where the image is located.

password

The password to authenticate with the registry where the image is located.

The list of runners and their tasks

A Forgejo runner listens on a Forgejo instance, waiting for jobs. To figure out if a runner is available for a given repository, go to /{owner}/{repository}/settings/actions/runners. If there are none, you can run one for yourself on your laptop.

list of runners

Some runners are Global and are available for every repository, others are only available for the repositories within a given user or organization. And there can even be runners dedicated to a single repository. The Forgejo administrator is the only one able to launch a Global runner. But the user who owns an organization can launch a runner without requiring any special permission. All they need to do is to get a runner registration token and install the runner on their own laptop or on a server of their choosing (see the Forgejo Actions administrator guide for more information).

Clicking on the pencil icon next to a runner shows the list of tasks it executed, with the status and a link to display the details of the execution.

show the runners tasks

The list of tasks in a repository

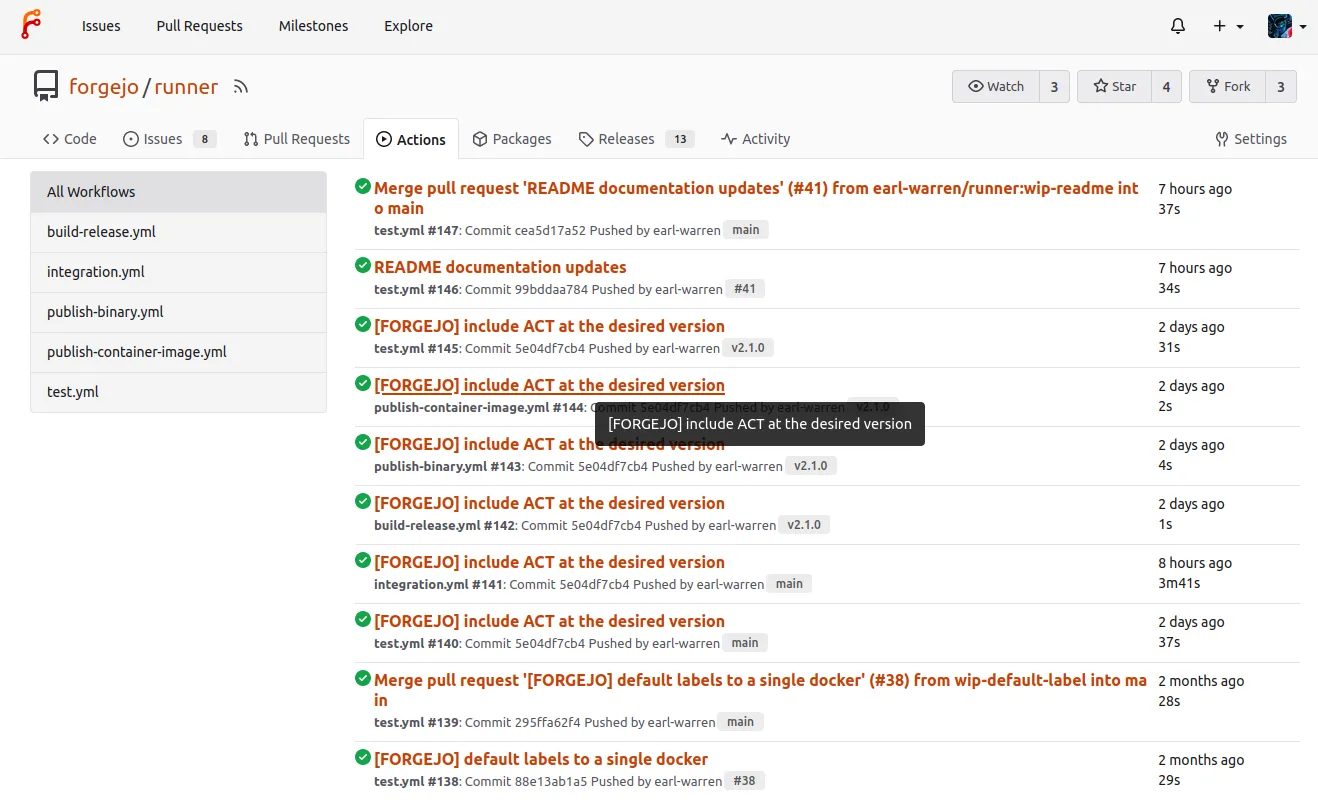

From the Actions tab in a repository, the list of ongoing and past tasks triggered by this repository is displayed with their status.

the list of actions in a repository

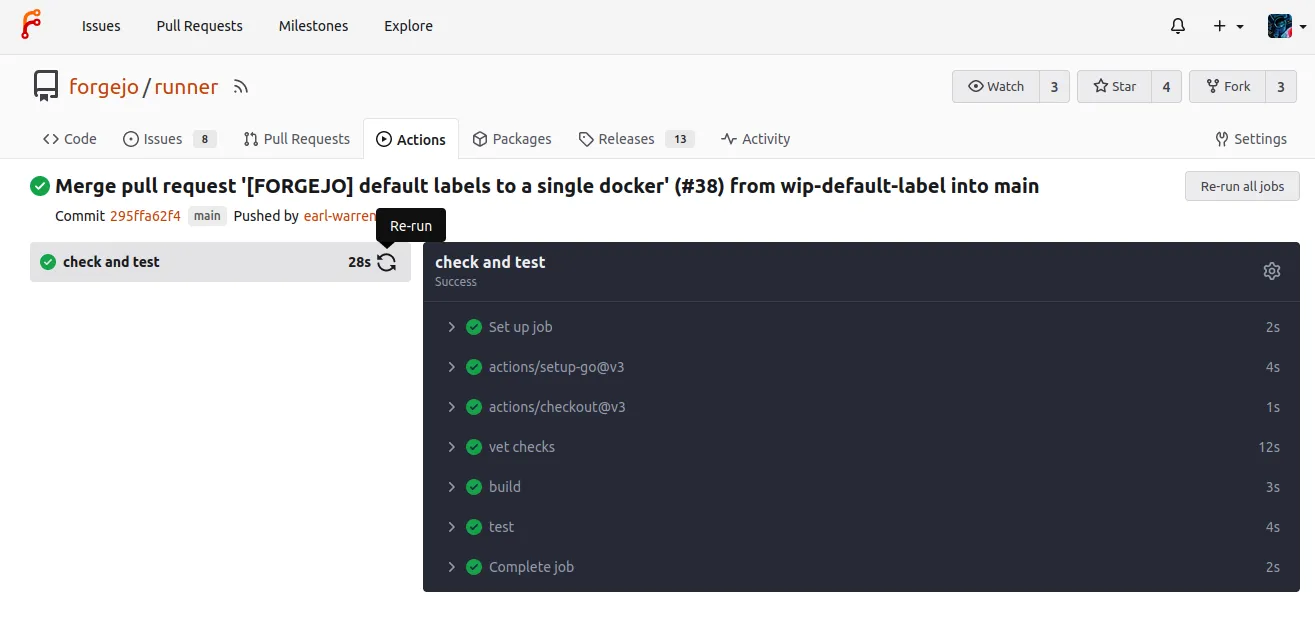

Following the link on a task displays the logs and the Re-run all jobs button. It is also possible to re-run a specific job by hovering on it and clicking on the arrows.

the details of an action

Pull request actions are moderated

The first time a user proposes a pull request, the task is blocked to reduce the security risks.

blocked action

It can be approved by a maintainer of the project and there will be no need to unblock future pull requests.

button to approve an action

Secrets

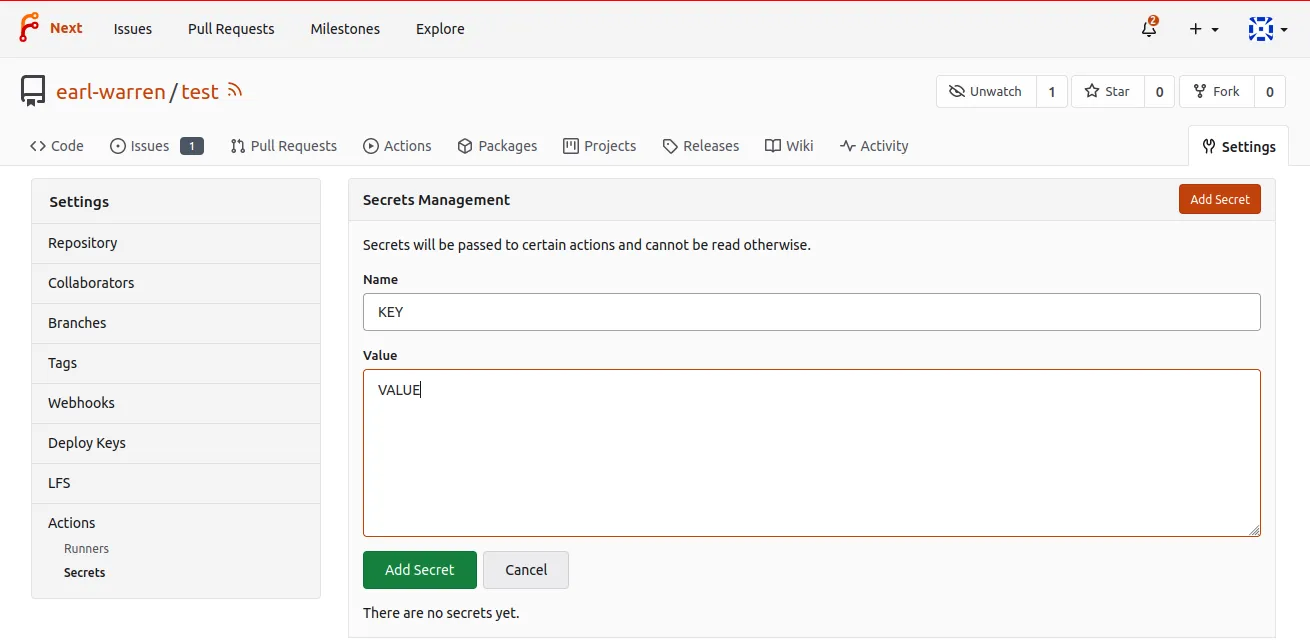

A repository, a user or an organization can hold secrets, a set of key/value pairs that are stored encrypted in the Forgejo database and revealed to the workflows as ${{ secrets.KEY }}. They can be defined from the web interface:

  • in /org/{org}/settings/actions/secrets to be available in all the repositories that belong to the organization
  • in /user/settings/actions/secrets to be available in all the repositories that belong to the logged in user
  • in /{owner}/{repo}/settings/actions/secrets to be available to the workflows of a single repository

add a secret

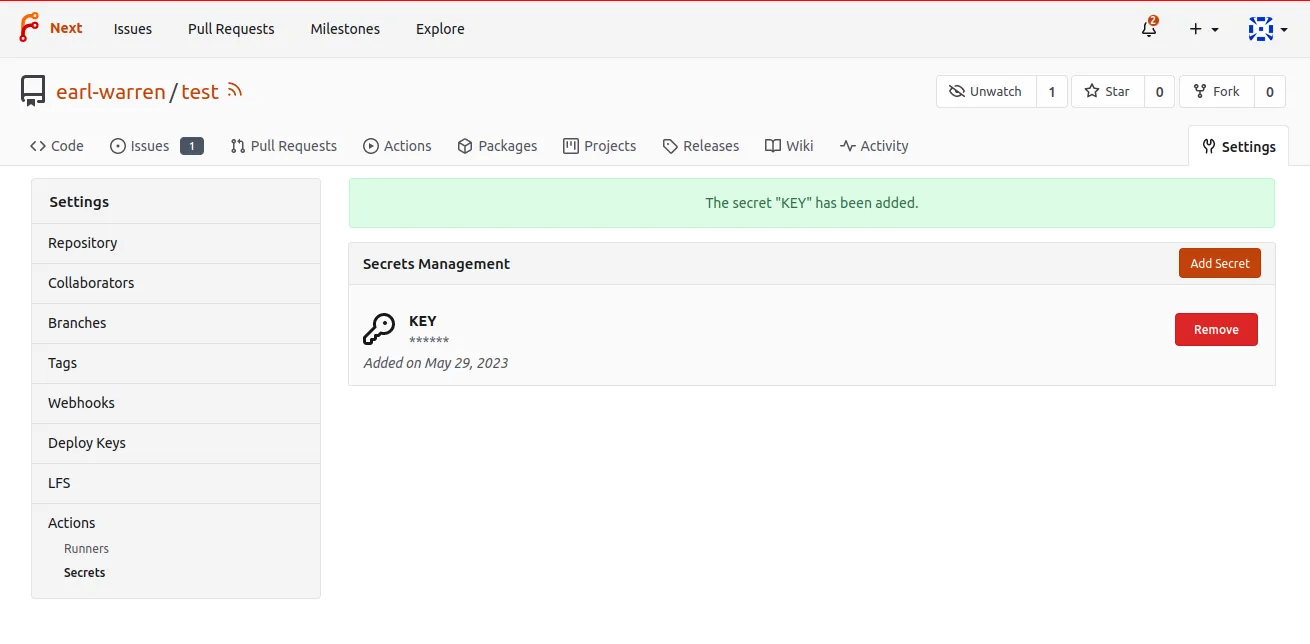

Once the secret is added, its value cannot be changed or displayed.

secrets list

Workflow reference guide

The syntax and semantics of the YAML file describing a workflow are partially explained here. When an entry is missing the GitHub Actions documentation may be helpful because there are similarities. But there also are significant differences that require testing.

The name of each chapter is a pseudo YAML path where user defined values are in <>. For instance jobs.<job_id>.runs-on documents the following YAML equivalent where job-id is myjob:

jobs:
  myjob:
    runs-on: docker

on

Workflows will be triggered on certain events with the following:

on:
  <event-name>:
    <event-parameter>:
    ...

e.g. to run a workflow when branch main is pushed

on:
  push:
    branches:
      - main
trigger eventactivity types
createnot applicable
deletenot applicable
forknot applicable
gollumnot applicable
pushnot applicable
issuesopened, edited, closed, reopened, assigned, unassigned, milestoned, demilestoned, labeled, unlabeled
issue_commentcreated, edited, deleted
pull_requestopened, edited, closed, reopened, assigned, unassigned, synchronize, labeled, unlabeled
pull_request_reviewsubmitted, edited
pull_request_review_commentcreated, edited
releasepublished, edited
registry_packagepublished

Not everything from https://docs.github.com/en/actions/using-workflows/events-that-trigger-workflows is implemented yet. Please refer to the forgejo/actions package source code and the list of webhook event names to find out about supported triggers.

env

Set environment variables that are available in the workflow in the env context and as regular environment variables.

env:
  KEY1: value1
  KEY2: value2
  • The expression ${{ env.KEY1 }} will be evaluated to value1
  • The environment variable KEY1 will be set to value1

Checkout the example.

jobs.<job_id>

Each job in a workflow must specify the kind of machine it needs to run its steps with runs-on. For instance docker in the following workflow:

---
jobs:
  test:
    runs-on: docker

means that the Forgejo runner that claims to provide a kind of machine labelled docker will be selected by Forgejo and sent the job to be run.

The actual machine provided by the runner entirely depends on how the Forgejo runner was registered (see the Forgejo Actions administrator guide for more information).

The list of available labels for a given repository can be seen in the /{owner}/{repo}/settings/actions/runners page.

actions results

jobs.<job_id>.runs-on

By default the docker label will create a container from a Node.js 16 Debian GNU/Linux bullseye image and will run each step as root. Since an application container is used, the jobs will inherit the limitations imposed by the engine (Docker for instance). In particular they will not be able to run or install software that depends on systemd.

The runs-on: self-hosted label will run the jobs in a LXC container where software that rely on systemd can be installed. Nested containers can also be created recursively (see the setup-forgejo integration tests for an example).

Services are not supported for jobs that run on LXC.

jobs.<job_id>.container

If the default image is unsuitable, a job can specify an alternate container image with container:, as shown in this example. For instance the following will ensure the job is run using Alpine 3.18.

runs-on: docker
container:
  image: alpine:3.18
  ## Optionally provide credentials if the registry requires authentication.
  #credentials:
  #  username: "root"
  #  password: "admin1234"

jobs.<job_id>.container.options

A string of additional options, as documented in docker run. For instance: “—workdir /myworkdir —ulimit nofile=1024:1024”.

NOTE: the --volume option is restricted to a whitelist of volumes configured in the runner executing the task. See the Forgejo Actions administrator guide for more information.

jobs.<job_id>.steps

An array of steps executed sequentially on the host specified by runs-on.

jobs.<job_id>.steps.if

The step is run if the expression evaluates to true. The following additional boolean functions are supported:

  • success(). returns true when none of the previous steps have failed or been canceled.
  • always(). causes the step to always execute, and returns true, even when canceled. If you want to run a job or step regardless of its success or failure, use the recommended alternative: !cancelled().
  • failure(). returns true when any previous step of a job fails.

Checkout the workflows in example-if and example-if-fail.

jobs.<job_id>.steps.uses

Specifies the repository from which the Action will be cloned or a directory where it can be found.

  • Remote actions A relative Action such as uses: actions/checkout@v3 will clone the repository at the URL composed by prepending the default actions URL which is https://code.forgejo.org/. It is the equivalent of providing the fully qualified URL uses: https://code.forgejo.org/actions/checkout@v3. In other words the following:

    on: [push]
jobs:
  test:
    runs-on: docker
    steps:
      - uses: actions/checkout@v3

    is the same as:

    on: [push]
jobs:
  test:
    runs-on: docker
    steps:
      - uses: https://code.forgejo.org/actions/checkout@v3

    When possible it is strongly recommended to choose fully qualified URLs to avoid ambiguities. During installation, the `Forgejo’ instance may use another default URL and a workflow could fail because it gets an outdated version from https://tooold.org/actions/checkout instead. Or even a repository that does not contain the intended action.

  • Local actions

    An action that begins with a ./ will be loaded from a directory instead of being cloned from a repository. The structure of the directory is otherwise the same as if it was located in a remote repository.

    NOTE: the most common mistake when using an action included in the repository under test is to forget to checkout the repository with uses: actions/checkout@v3.

    Checkout the example.

jobs.<job_id>.steps.with

A dictionary mapping the inputs of the action to concrete values. The action.yml defines and documents the inputs.

on: [push]
jobs:
  ls:
    runs-on: docker
    steps:
      - uses: actions/checkout@v3
      - id: local-action
        uses: ./.forgejo/local-action
        with:
          input-two-required: 'two'

Checkout the example

For remote actions that are implemented with a Dockerfile instead of action.yml, the args key is used as command line arguments when the container is run.

Checkout the example

Debugging workflows with forgejo-runner exec

To get a quicker debug loop when working on a workflow, it may be more convenient to run them on your laptop using forgejo-runner exec. For instance:

$ git clone --depth 1 http://code.forgejo.org/forgejo/runner
$ cd runner
$ forgejo-runner exec --workflows .forgejo/workflows/test.yml --job lint
INFO[0000] Using default workflow event: push
INFO[0000] Planning job: lint
INFO[0000] cache handler listens on: http://192.168.1.20:44261
INFO[0000] Start server on http://192.168.1.20:34567
[checks/check and test] 🚀  Start image=node:16-bullseye
[checks/check and test]   🐳  docker pull image=node:16-bullseye platform= username= forcePull=false
[checks/check and test]   🐳  docker create image=node:16-bullseye platform= entrypoint=["/bin/sleep" "10800"] cmd=[]
[checks/check and test]   🐳  docker run image=node:16-bullseye platform= entrypoint=["/bin/sleep" "10800"] cmd=[]
[checks/check and test]   ☁  git clone 'https://code.forgejo.org/actions/setup-go' # ref=v3
[checks/check and test] ⭐ Run Main actions/setup-go@v3
[checks/check and test]   🐳  docker cp src=/home/loic/.cache/act/actions-setup-go@v3/ dst=/var/run/act/actions/actions-setup-go@v3/
...
|
| ==> Ok
|
[checks/check and test]   ✅  Success - Main test
[checks/check and test] ⭐ Run Post actions/setup-go@v3
[checks/check and test]   🐳  docker exec cmd=[node /var/run/act/actions/actions-setup-go@v3/dist/cache-save/index.js] user= workdir=
[checks/check and test]   ✅  Success - Post actions/setup-go@v3
[checks/check and test] Cleaning up services for job check and test
[checks/check and test] Cleaning up container for job check and test
[checks/check and test] Cleaning up network for job check and test, and network name is: FORGEJO-ACTIONS-TASK-push_WORKFLOW-checks_JOB-check-and-test-network
[checks/check and test] 🏁  Job succeeded

Examples

Each example is part of the setup-forgejo action test suite. They can be run locally with something similar to:

$ git clone --depth 1 http://code.forgejo.org/actions/setup-forgejo
$ cd setup-forgejo
$ forgejo-runner exec --workflows testdata/example-expression/.forgejo/workflows/test.yml
INFO[0000] Using the only detected workflow event: push
INFO[0000] Planning jobs for event: push
INFO[0000] cache handler listens on: http://192.168.1.20:43773
INFO[0000] Start server on http://192.168.1.20:34567
[test.yml/test] 🚀  Start image=node:16-bullseye
[test.yml/test]   🐳  docker pull image=node:16-bullseye platform= username= forcePull=false
[test.yml/test]   🐳  docker create image=node:16-bullseye platform= entrypoint=["/bin/sleep" "10800"] cmd=[]
[test.yml/test]   🐳  docker run image=node:16-bullseye platform= entrypoint=["/bin/sleep" "10800"] cmd=[]
[test.yml/test] ⭐ Run Main set -x
test "KEY1=value1" = "KEY1=value1"
test "KEY2=$KEY2" = "KEY2=value2"
[test.yml/test]   🐳  docker exec cmd=[bash --noprofile --norc -e -o pipefail /var/run/act/workflow/0] user= workdir=
| + test KEY1=value1 = KEY1=value1
| + test KEY2=value2 = KEY2=value2
[test.yml/test]   ✅  Success - Main set -x
test "KEY1=value1" = "KEY1=value1"
test "KEY2=$KEY2" = "KEY2=value2"
[test.yml/test] Cleaning up services for job test
[test.yml/test] Cleaning up container for job test
[test.yml/test] Cleaning up network for job test, and network name is: FORGEJO-ACTIONS-TASK-push_WORKFLOW-test-yml_JOB-test-network
[test.yml/test] 🏁  Job succeeded
  • Echo - a single step that prints one sentence
  • Expression - a collection of various forms of expression
  • Local actions - using an action found in a directory instead of a remote repository
  • PostgreSQL service - a PostgreSQL service and a connection to display the (empty) list of tables of the default database
  • Using services - illustrates how to configure and use services
  • Choosing the image with container - replacing the runs-on: docker image with the alpine:3.18 image using container:
  • Docker action - using a action implemented as a Dockerfile

Glossary

  • action: a repository that can be used in a way similar to a function in any programming language to run a single step.
  • expression: a string enclosed in ${{ ... }} and evaluated at runtime
  • job: a sequential set of steps.
  • label the kind of machine that is matched against the value of runs-on in a workflow.
  • runner: the Forgejo runner daemon tasked to execute the workflows.
  • step: a command the runner is required to carry out.
  • workflow or task: a file in the .forgejo/workflows directory that contains jobs.
  • workspace is the directory where the files of the job are stored and shared between all steps
This page's content is available under the CC-BY-SA-4.0 license.
Edit this page
